AbstractDetector#

class esis.optics.abc.AbstractDetector#

Bases: Printable, Rollable, Yawable, Pitchable, Translatable, CylindricallyTransformable

Attributes

`azimuth`	angle of rotation about the axis of symmetry
`bits_adc`	the number of bits supported by the analog-to-digital converter
`channel_trigger`	the channel that strobes the sychronization trigger
`charge_diffusion`	standard deviation of the charge diffusion kernel
`clearance`	minimum distance between this component and other components
`dark_current`	dark current value for this detector
`distance_focus`	the distance the detector can be moved along the optic axis to focus it
`distance_radial`	distance from the axis of symmetry
`gain`	gain value of the analog to digital converter
`manufacturer`	the name of the company that manufactured this device
`name_channel`	human-readable name of each channel of this detector array
`num_columns_blank`	number of black columns captured by this detector
`num_columns_overscan`	number of overscan columns captured by this detector
`pitch`	pitch angle of this object
`position_image`	nominal position of the center of the field of view
`readout_noise`	standard deviation of the readout noise
`roll`	roll angle of this object
`serial_number`	the serial number of this device
`shape_pixels`	number of pixels along each axis of the detector
`shape_pixels_all`
`surface`
`temperature`	temperature of this device
`time_exposure`	the current exposure length
`time_exposure_max`	the maximum exposure length supported by this detector
`time_exposure_min`	the minimum exposure length supported by this detector
`time_readout`	time required to perform a readout operation
`time_transfer`	time required to perform a frame transfer operation
`timedelta_exposure_min`	the smalled amount the exposure length can be incremented by
`timedelta_synchronization`	the synchronization error between the different channels
`transformation`	the coordinate transformation between the global coordinate system and this object's local coordinate system
`translation`	translate the coordinate system
`width_border`	size of the border around the light-sensitive area
`width_clear`
`width_mechanical`
`width_pixels`	the physical size of a pixel
`yaw`	yaw angle of this object

Methods

`__init__`()
`to_string`([prefix])	Public-facing version of the `__repr__` method that allows for defining a prefix string, which can be used to calculate how much whitespace to add to the beginning of each line of the result.

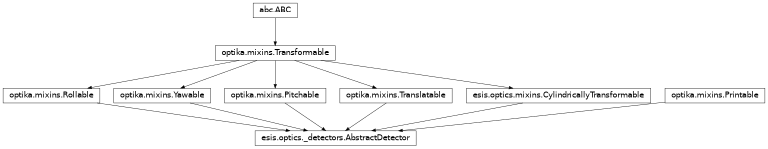

Inheritance Diagram

to_string(prefix=None)#

Public-facing version of the __repr__ method that allows for defining a prefix string, which can be used to calculate how much whitespace to add to the beginning of each line of the result.

Parameters:: prefix (None | str) – an optional string, the length of which is used to calculate how much whitespace to add to the result.
Return type:: str

abstract property azimuth: Quantity | AbstractScalar#: angle of rotation about the axis of symmetry

abstract property bits_adc: int#: the number of bits supported by the analog-to-digital converter

abstract property channel_trigger: int#: the channel that strobes the sychronization trigger

abstract property charge_diffusion: Quantity | AbstractScalar#: standard deviation of the charge diffusion kernel

abstract property clearance: Quantity | AbstractScalar#: minimum distance between this component and other components

abstract property dark_current: Quantity | AbstractScalar#: dark current value for this detector

abstract property distance_focus: Quantity | AbstractScalar#: the distance the detector can be moved along the optic axis to focus it

abstract property distance_radial: Quantity | AbstractScalar#: distance from the axis of symmetry

abstract property gain: Quantity | AbstractScalar#: gain value of the analog to digital converter

abstract property manufacturer: str#: the name of the company that manufactured this device

abstract property name_channel: str | AbstractScalar#: human-readable name of each channel of this detector array

abstract property num_columns_blank: int#: number of black columns captured by this detector

abstract property num_columns_overscan: int#: number of overscan columns captured by this detector

abstract property pitch: Quantity | int | float | complex | ndarray | AbstractScalar#: pitch angle of this object

abstract property position_image: Quantity | AbstractCartesian2dVectorArray#: nominal position of the center of the field of view

abstract property readout_noise: Quantity | AbstractScalar#: standard deviation of the readout noise

abstract property roll: Quantity | int | float | complex | ndarray | AbstractScalar#: roll angle of this object

abstract property serial_number: str#: the serial number of this device

abstract property shape_pixels: int | AbstractCartesian2dVectorArray#: number of pixels along each axis of the detector

property shape_pixels_all: Cartesian2dVectorArray#

property surface: ImagingSensor#

abstract property temperature: Quantity | AbstractScalar#: temperature of this device

abstract property time_exposure: Quantity | AbstractScalar#: the current exposure length

abstract property time_exposure_max: Quantity#: the maximum exposure length supported by this detector

abstract property time_exposure_min: Quantity#: the minimum exposure length supported by this detector

abstract property time_readout: Quantity | AbstractScalar#: time required to perform a readout operation

abstract property time_transfer: Quantity | AbstractScalar#: time required to perform a frame transfer operation

abstract property timedelta_exposure_min: Quantity#: the smalled amount the exposure length can be incremented by

abstract property timedelta_synchronization: Quantity#: the synchronization error between the different channels

property transformation: AbstractTransformation#: the coordinate transformation between the global coordinate system and this object’s local coordinate system

abstract property translation: Quantity | AbstractScalar | AbstractVectorArray#: translate the coordinate system

abstract property width_border: Quantity | AbstractScalar#: size of the border around the light-sensitive area

property width_clear: Quantity | Cartesian2dVectorArray#

property width_mechanical: Quantity | AbstractScalar#

abstract property width_pixels: Quantity | AbstractCartesian2dVectorArray#: the physical size of a pixel

abstract property yaw: Quantity | int | float | complex | ndarray | AbstractScalar#: yaw angle of this object
